1. What is PCB wet process equipment and how does it work?

As professional PCB equipment suppliers, we can provide OEM/ODM for PCB wet process equipment, but what is PCB wet process equipment? It refers to machines used in the manufacturing of printed circuit boards (PCBs) that utilize liquid chemicals to carry out various processes such as etching, developing, cleaning, and plating. These processes are essential to create the conductive pathways and features on the PCB, and the wet process equipment typically involves tanks, rollers, and spray systems that apply chemicals to the PCB surface. Common types of wet process equipment include Etching Machines, Developing Machines, Chemical Cleaning Machines, and Plating Lines.

2. What is the difference between the various types of wet process machines?

Each type of PCB wet process machine serves a specific purpose in PCB manufacturing:

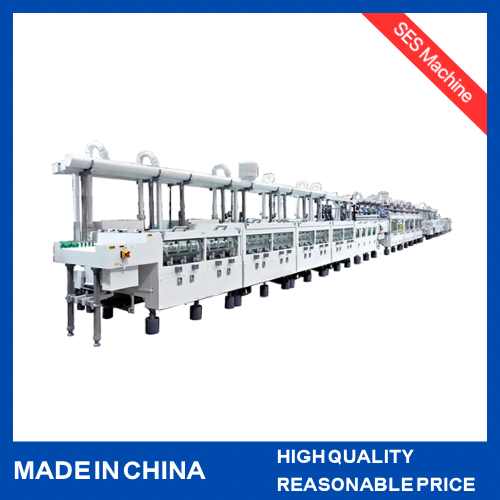

• Etching Machines : These machines use chemicals, typically copper chloride or ferric chloride, to remove unwanted copper from the PCB and leave behind the desired circuit pattern. This is one of the core processes in PCB production.

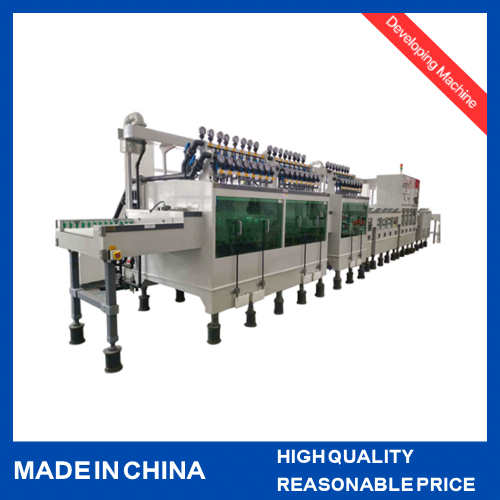

• Developing Machines : These machines are used to remove the unexposed resist on the PCB after the photolithography process, revealing the circuit pattern that was imaged onto the board.

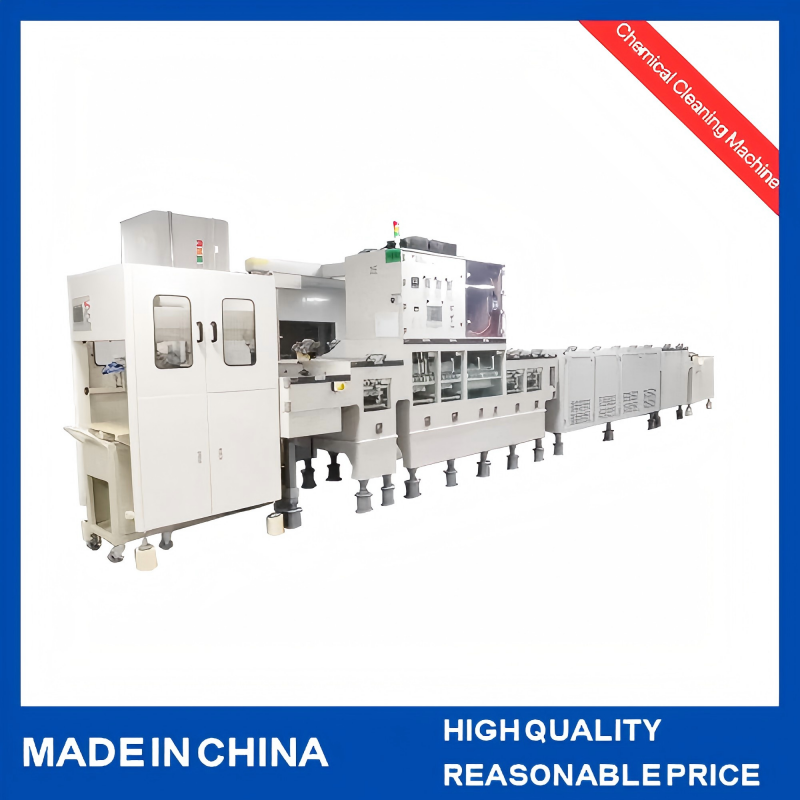

• Chemical Cleaning Machines : These machines are used to clean the PCB surface to remove any unwanted residues or contaminants before further processing like plating or coating.

• Plating Lines : These are used to deposit a thin layer of metal, such as copper, onto the PCB surface, ensuring electrical conductivity.

• Peeling Machines : Used for removing films or layers from the PCB surface post-processing, these machines ensure the boards are prepared for the next stage.

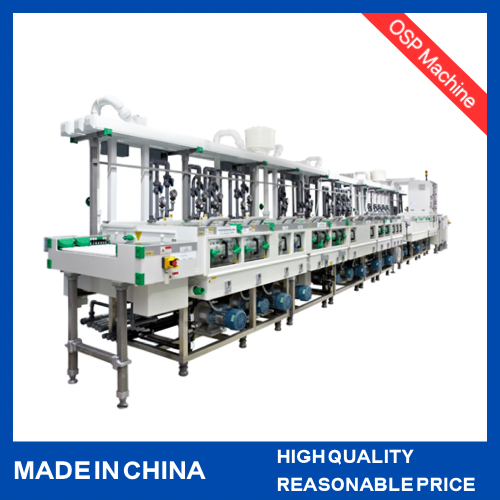

• OSP Lines (Organic Solderability Preservative) : These lines apply a thin, organic layer to prevent oxidation on the PCB surface and ensure solderability.

• Brown Oxidation Lines : These lines are used to create an oxidation layer on the PCB to ensure improved soldering and electrical performance.

• Sand-Blasting Machines : These machines use high-pressure sand to clean and roughen the PCB surface, which helps with better adhesion in subsequent processes.

• Tin Stripping Machines : Used to remove tin or other metallic coatings from the PCB, typically in cases where a rework is required.

3. How do I choose the right PCB wet process equipment for my production line?

Selecting the right equipment depends on several factors including the type of PCBs you are manufacturing, the production scale, and your specific requirements for speed, quality, and automation. For example:

• Type of PCB : Are you manufacturing simple single-layer boards, or more complex multi-layer boards? This will determine the type of etching, plating, and cleaning processes needed.

• Production Scale : Consider whether you need equipment for small batch production or large-scale mass production. Some machines are better suited for high throughput, while others may be more flexible for small runs.

• Customization Needs : Depending on your process, you may need custom features like automatic chemical recycling, advanced filtration systems, or specialized coating applications.

• Automation Level : Fully automated machines can reduce labor costs and increase production efficiency, but they also require a higher initial investment.

4. What are the key considerations when setting up a PCB wet process line?

When setting up a PCB wet process line, key considerations include:

• Space and Layout : Wet process machines often require specific space allocations due to the chemical handling and waste water management needs. Ensuring the correct layout will minimize inefficiencies.

• Chemical Handling and Safety : Proper handling and storage of chemicals is essential for worker safety and for meeting environmental regulations. It’s critical to have spill containment, proper ventilation, and safety protocols in place.

• Wastewater Management : Some wet process machines generate wastewater that contains harmful chemicals, requiring treatment before disposal. Ensure that your facility is equipped with the appropriate waste water treatment system.

• Machine Maintenance and Support : The reliability of your wet process equipment is crucial. Regular maintenance and access to technical support are necessary to avoid unplanned downtime.

5. How do I maintain PCB wet process equipment?

Maintenance of PCB wet process equipment is essential for ensuring consistent product quality and reducing the likelihood of downtime. Here are some tips:

• Regular Cleaning : Machines should be cleaned regularly to prevent chemical buildup and contamination. This helps maintain precision and avoid product defects.

• Chemical Replacement : Chemicals used in processes like etching or plating degrade over time, so it’s essential to monitor their condition and replace them when necessary.

• Inspection and Calibration : Periodic inspection and calibration of machines ensure that processes like etching and plating are consistently accurate.

• Training Staff : Operators should be trained in both the proper use and maintenance of equipment to ensure longevity and reduce errors during production.

6. Can PCB wet process equipment be automated?

Yes, many modern PCB wet process machines can be fully automated. Automation in wet process equipment improves efficiency, consistency, and throughput while reducing the potential for human error. Automated systems typically feature sensors and controllers that monitor chemical levels, temperature, and process times, adjusting them as needed to ensure consistent results.

7. What are the environmental impacts of PCB wet processes and how are they managed?

The environmental impact of PCB wet processes largely stems from the chemicals used and the waste generated during production. However, modern PCB wet process equipment is designed to minimize environmental impact by:

• Chemical Recycling : Some machines have built-in chemical recycling systems that reduce waste and the need for chemical replenishment.

• Wastewater Treatment : Wastewater from PCB processing often contains hazardous chemicals that must be treated before disposal. Many PCB wet process lines are equipped with advanced filtration and neutralization systems to ensure compliance with environmental standards.

• Eco-friendly Materials : New technologies have made it possible to reduce the use of toxic materials, such as lead, in the production process, contributing to greener PCB manufacturing.

8. What is the average lead time for delivery and installation of PCB wet process equipment?

The lead time for PCB wet process equipment varies depending on factors like machine complexity, customization requirements, and manufacturer capacity. On average, lead times range from 8 to 16 weeks for standard equipment. However, for highly customized systems or if components need to be sourced internationally, it may take longer. Installation and training may take an additional 1 to 2 weeks depending on the complexity of the machine.

9. What kind of warranty and support services are provided?

Most PCB wet process equipment manufacturers offer warranties that typically last from one to two years. This warranty often covers defects in materials and workmanship. In addition to the warranty, many suppliers offer ongoing support services, including:

• Technical support : Available to assist with any troubleshooting or issues that arise.

• Maintenance contracts : Some manufacturers offer preventive maintenance packages to keep your equipment running at peak performance.

• Training : On-site or online training to help operators use the equipment efficiently and safely.

10. How do I ensure the quality of my PCBs using wet process equipment?

To ensure high-quality PCBs, it is important to regularly monitor and control key parameters such as temperature, chemical concentrations, exposure times, and equipment calibration. This will minimize defects such as under-etching, over-etching, or plating inconsistencies. Additionally, performing regular quality inspections, using high-quality chemicals, and maintaining the equipment properly will help ensure that your PCBs meet the required standards.
